Largest capacity range in Compacts - from 170 cmh to 2000 cmh (100 cfm to 1177 cfm). Bry-Air FFB, 170 cmh through 2000 cmh (100 cfm to 1177 cfm) desiccant dehumidifier line is designed to integrate "small footprint and finish" of a commercial unit with "the ruggedness" of an industrial dehumidifier.

The BRY-AIR FFB Compact Dehumidifier is
CNC fabricated with powder coated finish and
incorporates a high performance fluted metal silicate desiccant synthesized rotor which allows for:

• Reduced Foot Print
• Increased Performance
• LowestVolume/Weight per CMH
• Innumerable mounting options
• Light weight, and can be installed above the false ceiling eliminating the need for floor space.

The FFB Compact Dehumidifier removes moisture
through a process of continuous "physical adsorption". The moisture is adsorbed in the dehumidification sector by the fluted, desiccant synthesised rotor and is exhausted in the reactivation sector by a stream of hot air in a counter flow.

Operating System

性能优点：
形式紧凑，占地面积小
配有能量回收单元，耗能低
可与预/后冷,旁通组合使用
CNS数控制造,静电喷涂
数字化控制, 检错容易

处理风量
1500 M³/H ~ 7600 M³/H

FVB(凹槽立式转轮)是最新型的干燥剂除湿机,它包含一个高性能的金属硅酸盐凹槽转轮,确保以最低的能耗获得最大除湿效果. BRY-AIR FVB可以将除湿与预冷、后冷、旁通风管、混和室容量控制过滤器等任何设备组合,在任何应用条件下，都能实现完全的环境控制。

The BRY-AIR FVB (Fluted Vertical Bed) is the latest in desiccant dehumidifier technology. The FVB incorporates a custom-made fluted metal silicate desiccant synthesized rotor which ensures highest moisture removal at
lowest energy cost.

The FVB dehumidifier has a small foot-print, thus allowing for space saving, and is available in two ranges FVB senior and FVB junior with capacities ranging from 1500 cmh (880 cfm) to 7600 cmh (4473 cfm).

设计和运行原理：
湿空气通过处理空气入口进入，
通过干燥剂转轮，将湿气吸收，
然后这些除湿后干燥空气通过处理空气出口传送到空调区域中.转轮随后转到再生区再生。在返回处理区之前，热的干燥剂转轮由一小部分处理空气冷却。因此,整个吸收过程是连续不断的。

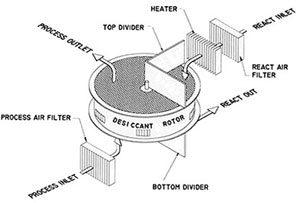

The moisture laden air enters through the process inlet and passes through the desiccant rotor, where the moisture is absorbed by the desiccant. The dry, dehumidified air is than delivered to conditioned area through the process outlet.

The rotor then rotates to the reactivation sector and the moisture is removed from the desiccant rotor, by blowing hot air through the reactivation outlet to the atmosphere.
The hot desiccant rotor is cooled by a small portion of the process air before rotating back to the process sector. Thus, the adsorption process is continuous.

CNC fabricated with powder coated finish, the Bry-Air FVB can be packaged with

• Pre/after cooling
• by pass ducting and
• mixing chambers

Volume controls, filter elements, etc. for complete environment control in a single package for any application.
