We provide all sort of Sewage applications valves:

Resilient Wedge Gate Valve

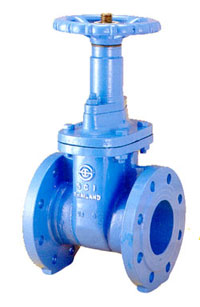

Fig. 180 Fig. 185

Fig 180, Non Rising Stem, With Hand wheel or Chain wheel or Cap or Operating Nut or Actuator.

Fig 185, Rising Stem (OS&Y), With Hand wheel or Chain wheel or Actuator.


Valves are manufactured and tested in accordance with BS 5150 PN 10 straight through bore type non rising stem and rising stem OS & Y and the wedge is replaceable without taking the valve out from the pipeline, suitable for all types of water and air.

Size: 50 - 600 mm.

- Vulcanized encapsulated resilient wedge, bubble tight shut-off,    low head loss and suitable for use as a throttling valve.
- Valve ends can be flanged, screwed, ringtite (socket), spigot,   grooved and shoulder.
- Flanged drilling to suit ANSI B16.1, BS 4504, BS 10, BS 4772,    ISO, AS 2129, DIN, JIS and etc.
- Various types of operators such as hand wheel, chain wheel, spur   gear, bevel gear, pneumatic, hydraulic and electric actuator can   be provided upon requested.
- Special accessories like by-pass unit, valve locking device,   tapped bosses, pipe cover, indicator and limit switches are also   available.

WASTE WATER AND WATER APPLICATIONS

Valves are manufactured and tested according to AWWA C509, BS 5163:86-A,B , DIN 3352-4,  ISO 7259-A,B , etc.  Face to Face comply with ANSI B16.10, BS 5163, DIN 3202 F4 &F5, ISO  5752 Series 3/14/15/19  Rated Pressure PN 10,16,25, straight through bore type non rising  stem and rising stem OS & Y.
   Cost saving feature is replaceable wedge without taking the valve out from the pipeline. Valves are  designed especially for potable water,waste water and suitable for all types of water and air.

Size: 50 - 600 mm.

  - Vulcanized encapsulated resilient wedge, bubble tight shut-off,low head loss.
  - Valve ends can be flanged, spigot, socket, mechanical joint,grooved and shoulder.
  - Flanged drilling to suit ANSI B16.1, BS 4504, BS 10, BS 4772,ISO, AS 2129, DIN, JIS
  - Various types of operators such as handwheel, chainwheel, spur gear, bevel gear, pneumatic, hydraulic and electric actuator can be provided upon requested.
  - Special accessories like by-pass unit, valve locking device,tapped bosses, pipe cover, indicator and limit switches are also available.

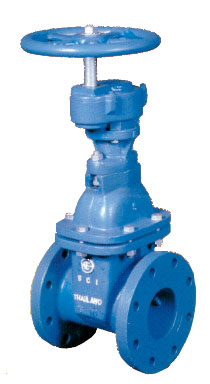

Fig. 161 Fig. 163 Fig.170

Fig. 161 Non Rising Stem, with Handwheel or Chainwheel or Cap or Operating Nut or Actuator.

Fig.162 Non Rising Stem, with Gear and Handwheel or Chainwheel or Cap or Operating Nut or Actuator.

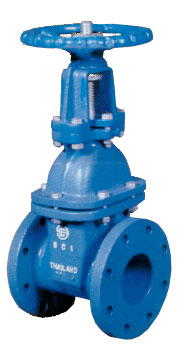

Fig.170 Rising Stem OS&Y, with Handwheel or Chainwheel or Actuator.

Resilient Wedge Gate Valves - Rising Stem OS&Y

Valves are manufactured and tested in accordance with BS 5150 PN 10/16/25 and also meet the requirements of MSS-SP-70 class 125/250, Suitable for all types of water, air and steam
Size: 50 - 2100 mm.

  - IBBM (iron body and bronze mounted), stainless steel trim, and all iron trim is also available.
  - Valve ends can be flanged or screwed.
  - Flanged drilling to suit ANSI B16.1, BS4504, BS10, BS4772, ISO, AS2129, DIN, JIS and etc.
  - Various types of operators such as handwheel, chainwheel, spur gear, bevel gear, pneumatic, hydraulic and electric actuator can be provided upon requested.
  - Special accessories like by-pass unit, valve locking device, tapped bosses, drain plug, pipe cover, indicator and limit switches are also available.

Fig. 110 Fig.112

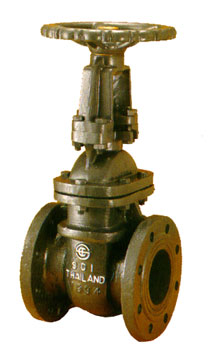

Fig.110 Without Gear, Assembly with Handwheel or Chainwheel or Actuator.

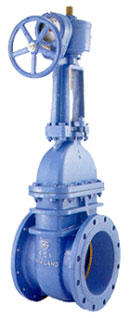

Fig.112 With Gear, Assembly with Handwheel or Chainwheel or Actuator.
¡¡

Resilient Wedge Gate Valve - Rising Stem OS&Y FOR FIRE MAIN MODEL 105U

Size: 2.5 - 12 inches
   - Class 175 (350 psi non-shock pressure)
   - Flange conforms with ANSI B16.1, class 125
   - Bubble tight shut-off
   - Full port flow and low head loss.
   - Vulcanized encapsulated resilient wedge.
   - One boss & boss with tap and plug.

¡¡
