有毒、易燃易爆气体检测仪、报警仪和分析仪- 提供便携、实验室和在线的150种以上易燃、易爆和有毒气体的分析仪、检测仪和报警仪器。
澳洲
SMARTOXs 牌 氣體測試儀可安裝在較安全的地方如控制房或电悾櫃內(非密閉塲地).省卻從电源至量度点的對点接綫問題.
尤其面對量度点位置為密閉塲地,
在安裝电子器材上的安全要求,及接电要求.每每因要求高防爆規格
(Explosion Proof Grade),令安裝成本大升.
而且省卻每次定時實地調試(routine
calibration) 以要再進入量度点的風險.
SMARTOXs 利用內置樣本吸泵經取樣喉把微量气體從量度点抽取後,先把樣本分析,再顯示在儀錶板上的液晶體顯示噐(最小可達 0.01 ppm
或10 ppb), 也可利用
4-20 mA Analogue Output 傳至遠控
SCADA 系統或經 Dry Contacts 设定警号,經电話線(Telemetry
System)作遠程通知.
保護規格 : IP 68
安裝簡易,因省卻大量电線安裝,及不用在密閉塲地操作,提供可靠及經濟的气體量度方案.
|
|
SmarTox 運作細節 |
|
|
|
|
|
SmarTox-O |
|
|
Canary Gas Detection System Applications in
Municipal Waste water treatment in
系統 在香港的項目參考
|
項目名稱 |
型号 |
應用 |
|
香港渠務署 屯門河旁街污水泵房 |
SMARTOXs |
H2S 硫化氫 |
|
香港渠務署 鴨脷州大街污水泵房 |
SMARTOXs |
H2S 硫化氫 |
|
香港渠務署 石澳污水廠除臭系統改善方案
|
SMARTOXs |
H2S/ LEL% Dual Gas Detection Systems 硫化氫/点火率二合一裝置 |
|
香港渠務署 坪洲污水泵房
(Ongoing Project) |
SMARTOXs |
H2S 硫化氫 Detection systems |
Case Studies 應用案例 :
香港渠務署- 石澳污水廠除臭系統改善方案 利用
5 套 SMARTOXs 儀分別量度 ( Foul Air ) 廢風管/ ( MBA) 主大樓風管/
生物反應缸排風管的
H2S 及%LEL , 並利用
4-20 mA Analogue Output 傳至遠控 SCADA 系統.
现代工業生產過程综合自动化控制系统是以 SCADA
(Supervisory Control And Data Acquisition “计算机監控和過程数据採集系统”)来概述的.

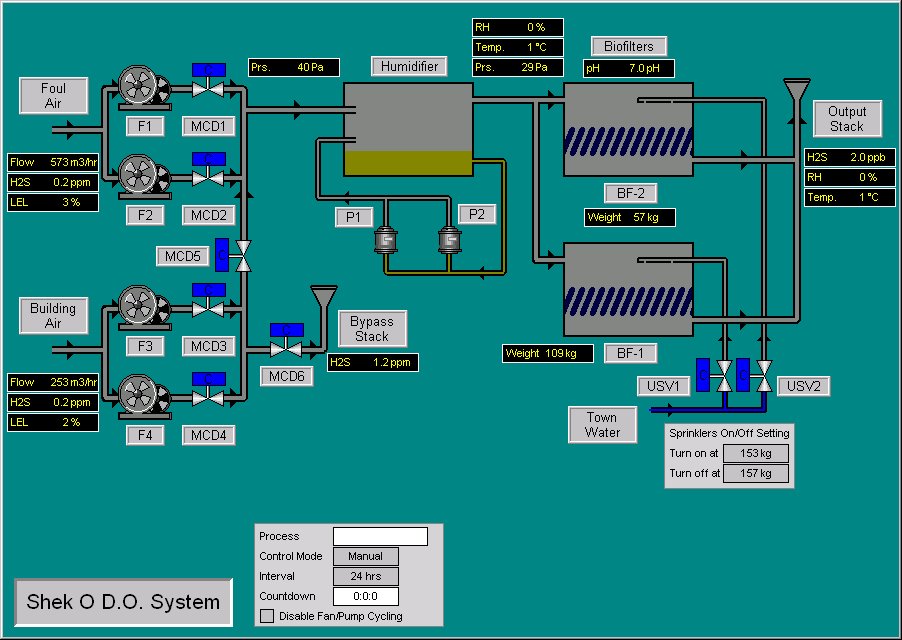

Typical
Schematic Diagram of The Deodorization System
|
|
|

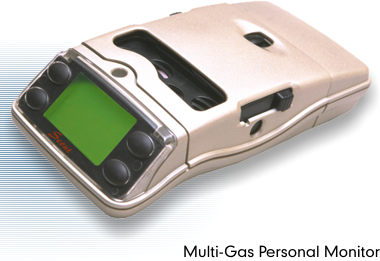

SCOUT Gas Portable Monitor |
|
|
Scout represents the next
generation of portable gas detection. Its innovative design and advanced
features make it the most versatile instrument of its kind. The SCOUT's ergonomic design and many of its features are
truly unique. Exclusive Advanced Battery Management Technology
(ABMTTM) feature provides up to 50 hours of runtime and, a wireless inductive
battery charger charges SCOUT faster and easier than ever. Unlike many other
similar instruments, Scout抯 battery pack is simple to release without having to
unscrew or remove components. With a "no case openings design" and wireless
inductive charging and data logging system the SCOUT has no case openings for
moisture to penetrate and corrode its internal components. The foolproof Intellishutter
TM lets users quickly change from diffusion mode to sample draw mode without
tools. The IntelliShutter's position is sensed to
prevent incorrect operation and a sample draw port only permits a probe to be
connected when the shutter is closed. An easy to use, modular platform, the SCOUT can
be configured for any level of user and stores up to 100 customized profiles
for work teams. Complete component modularity means SCOUT can be upgraded to
any level of sophistication or serviced in-the-field without specials tools
or complex procedures. Features: ·
field replacable sensors ·
pushbutton recall of
hygiene data ·
datalogging ·
runs basic,
supervisory, or hygiene modes ·
confidence light for
worry-free operation ·
Lapel alarms, hand
aspirated or motorized sampling pumps, and confined case kits available ·
Cenelec & |
|

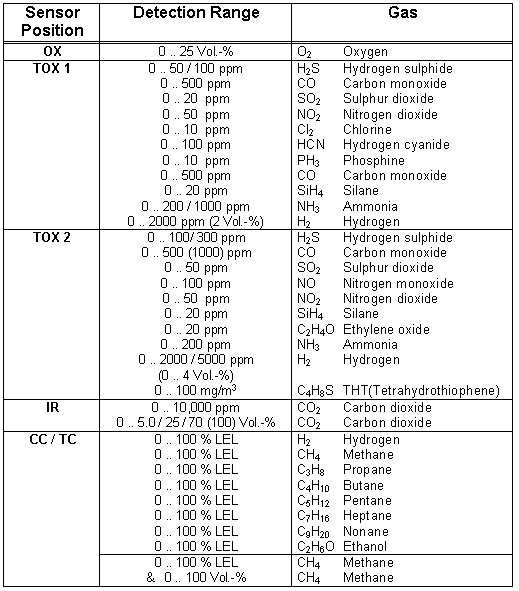

Available Gases for Gas
Detection Systems
|
|
|
|
GAS TRANSMITTERS
SENSOR STIK® TOXIC GAS SENSOR/TRANSMITTERS
For most toxic gas detection applications
and for in-place calibration
SENSOR STIK (Model 4500), a compact and complete
gas sensor/transmitter is totally self-contained in a 4.94" x 1.625"
package. Highly stable, electrochemical gas diffusion sensor and
microprocessor-based, encapsulated electronics. Design certified to CENELEC
intrinsic safety standards and manufactured by EIT to UL/BSI ISO 9002 quality
standards.
|
|
|||||
|
|
·
1 to 6 gases are measured and displayed at a time ·
Compact and handy, easy handling, weights only 770g ·
3 alarm thresholds for every gas, plus TWA/STEL, minimum/peak
values ·
Automatic zero point adjustment ·
Intelligent "smart sensor system", pre-calibrated
sensors, easily replaceable ·
Diffusion plus integrated pump ·
Ex-protection: EEx ib
d IIC T5 ·
Function tested: IBS/PFG-Nr. 413000598 |
||||
Microprocessor-technique
and state-of-the-art sensortechnology make the G 750
a specialist for measurement and monitoring of gas hazards. Up to 6 different
explosive or toxic gases and oxygen are continuously measured at a time.
The
"smart sensor system" allows for an adjustment of the measurement
task of the G 750, by exchanging the pluggable sensors. This means increased
flexibility for the user.
Gas
supply is made via diffusion or through a built-in sampling pump with up to 30
m sampling line. Thereby it is made sure that there are no gas hazards in
rooms, manholes or drains present and that it is not dangerous to enter them.
The
measurement values of the last 12 hours are stored in an optional available
data logger. This data can be send to a PC by means of an interface. Storing
these measurement values on a PC allows for a fast and cost saving archivating and documentation of these values.
With
its first-class accumulator the Polytector can
operate for up to 14 hours. The accumulator can even get exchanged in ex-areas.
Every function has been assigned to a specific key, which allows for an easy
operation of the G 770 even though its numerous features. The Polytector shows on the graphic display the gas
concentration and user instructions. A zoom function and the illuminated display
assure a faultless reading of the display even if the view on the display is
restricted through darkness or by wearing protection glasses. The switching
into the service mode allow for adjusting of parameter and function settings to
specific applications.
The Polytector weights 770g when fully equipped with 6 sensors,
accumulator and pump. The robust design of the detector and the long life
sensors assure safe operations even in harsh conditions.
|
|
Microdust Pro TM - Aerosol Photometer
, Portable Real-Time Aerosol Monitor, Data Logger
