ACTIVATED CARBON ADSORPTION
活性碳物理吸附
|
|||
 |
活性碳吸附脱臭
原理：使恶臭物质通过活性碳层，利用物理吸附去除； 适用物质：硫化氢 H2S 和硫醇（氨和胺）。
脱臭工艺流程及脱臭装置
臭气 → 空气净化器 → 风机 → 生物脱臭装置 → 活性炭脱装置 → 排放 ( 或只經過活性炭脱装置 以達至 97-99% 除臭效率.)
Aromatrix pre-engineered pelletised activated carbon adsorption
systems are highly efficient in eliminating residual odours
from municipal and industrial processes.
It is also
effective for eliminating residual organic compounds from
exhaust and other difficult to treat the odours.
The system is
designed to provide a cost effective odour removal solution
with ease of installation and operation.
Features
Flexibility and ease of installation 安装簡易
Excellent corrosion resistant properties防銹理想
No chemical usage and storage required不須化学品
Continuous treatment 不間斷式運作
Minimal operator attention required 極少操作員操作 |
||
|

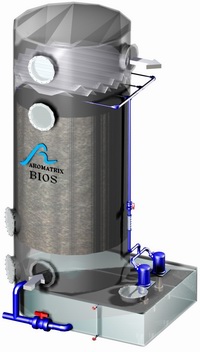

BIOTRICKLING FILTER
生物脱臭
|
|||
 |
生物脱臭是利用载体填料比表面积上微生物的作用脱臭。臭气物质先被填料吸收，然后被填料上附着的微生物氧化分解，从而完成臭气的除臭过程。 为了使微生物保持高的活性，必须为之创造一个良好的生存环境，比如：适宜的湿度、pH值、氧气含量、温度和营养成分等。 实际生产设计要求，载体填料相对湿度保持在80～95%，所以经常采用喷淋原污水或初沉池出水以提供水分和营养源。在填料选择方面, 生物脱臭塔最主要部分是填料。一种好的载体填料必须满足： 容许生长的微生物种类丰富；为微生物提供栖息生长大的比表面积； 营养成分合理（N、P、K和微量元素）；常用的填料有：塑料、半软性塑料、干树皮、干草、纤维性泥炭或其混合物。 脱臭塔填料的堆放高度取决于所要求的停留时间和表面负荷。工程上填料高度一般为1.0～1.2 m。
如果选择的填料合适，工艺上能做到布气均匀、排除气流短路的话，最低高度可以为0.5 m。 The biotrickling filter is essentially a biological deodorisation system that uses a technology that is 100% environmentally friendly. Design flexibility in vessel construction, packing material selection and depth sizing permit each unit to be engineered to meet specific performance requirements. Features
|
||
| CHEMICAL SCRUBBER 化学吸附 | |||
|
|
Aromatrix chemical scrubbers are highly efficient in removing odours, vapours and gases. The scrubbers basically operate on two fundamental principles of mass transfer and impaction. Contaminants are transferred from the exhaust stream to the liquid phase within the scrubber, where they are absorbed and neutralised. Design flexibility in vessel construction, packing material selection and depth sizing permit each unit to be engineered to meet specific performance requirements. Features Vertical Column 直身式 Counter-current
Flow 對流法处理
Enhanced removal efficiencies 額外效益
Floor space savings 少佔地方 Easy
access to sump for cleaning 易於清理化学井
Discharge transition included 包含化学品放置 旁通Horizontal Cross-Flow 橫身式
|
||
